WHITECUBE

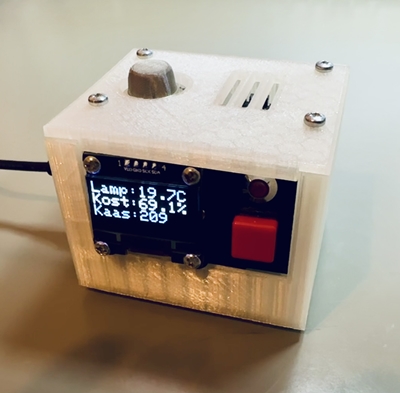

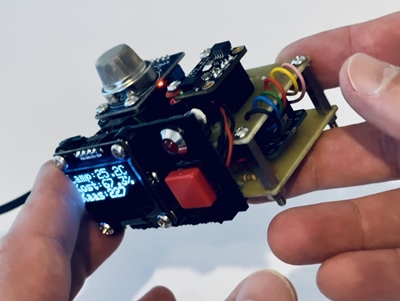

The Whitecube is a small home indoor air meter. The device measures room temperature, humidity and general gas condition (ppm). The Whitecube's MQ-2 sensor can detect LPG, Smoke, Alcohol, Propane, Hydrogen, Methane and Carbon Monoxide concentrations ranging from 200 to 10000 ppm. ppm mean Parts-per-million and it is the most commonly used unit for measuring gas concentration. ppm is simply the ratio of one gas to another.

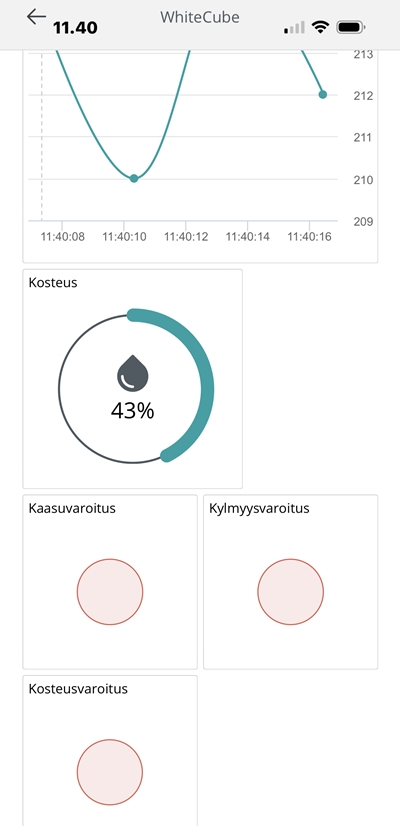

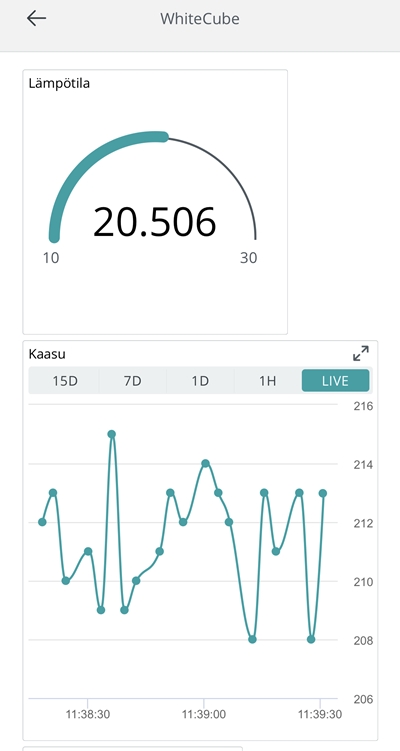

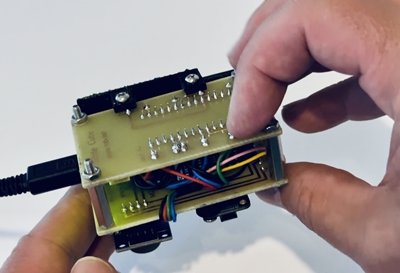

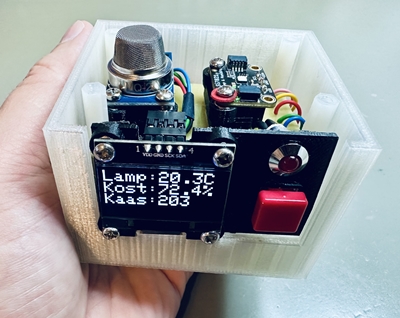

The device is connected to the Arduino cloud, which can also be used to monitor the quality of the room air via e.g. a smartphone. The red LED indicates if one of the limit values has been exceeded.

Whitecube technical files:

Whitecube Arduino Cloud code
Whitecube PCB Circuit diagram
Whitecube Circuit diagram

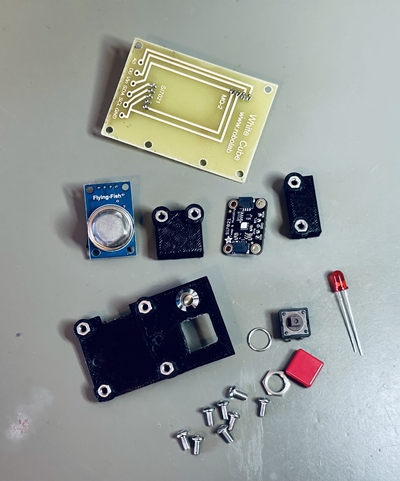

Whitecube top case, 3mf-file
Whitecube bottom case, 3mf-file
Whitecube screen case, 3mf-file
Whitecube screen case support part, 3mf-file
MQ-2 sensor support part, 3mf-file
SI7021 sensor support part, 3mf-file

Design and implementation: Jaakko Muhonen
Year of manufacture: 2023
Central processing unit: Arduino MKR 1010 Wifi
