GUARDIAN BUILDING INSTRUCTIONS

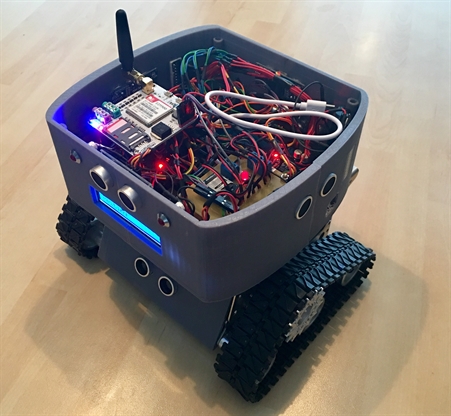

The Guardian is a small guard robot that lets you see
what's happening at home. The robot is controlled using text messages.
Here is a step by step building instructions.
STEP EIGHT (Arduino wiring2)

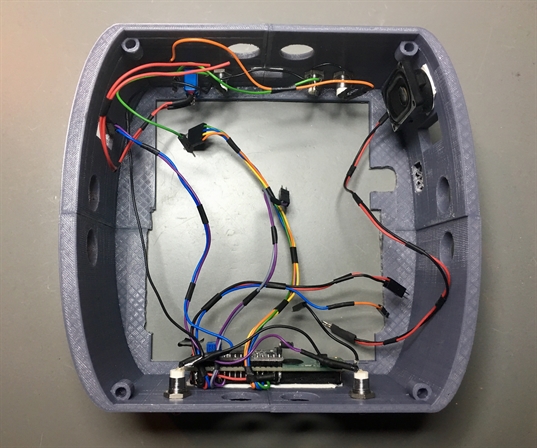

3D-print Guardian housing

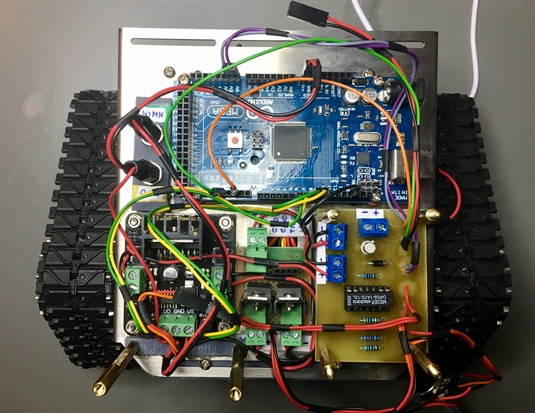

and make rest Arduino wiring.
Guardian housing parts STL-file 3D printing:
-
HousingFrontRight.stl
-
HousingFrontLeft.stl
-
HousingBackRight.stl
-
HousingBackLeft.stl
Arduino wiring part list:
4 x 3D-printed housing part
1 x Arduino Mega 2560
1 x Guardian Main Power Circuit Up Board
1 x Guardian Main Power Circuit Down Board
1 x Liquid Crystal screen
5 x Ultrasonic Sensor
1 x Efcom hard reset switch
1 x Camera cable (micro USB coupling)

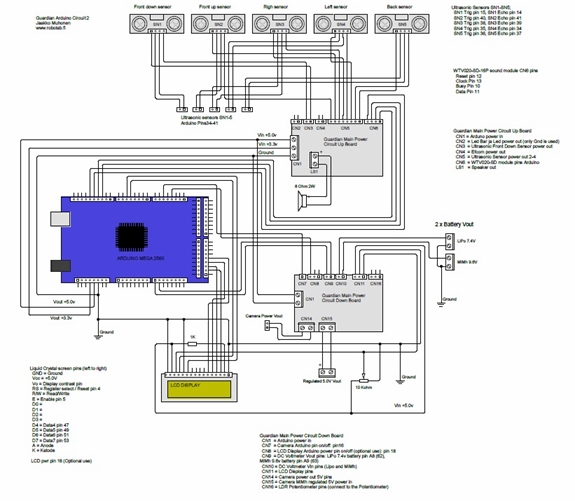

Guardian Arduino Circuit 2:
-
Guardian Arduino Circuit2.pdf
