GUARDIAN BUILDING INSTRUCTIONS
The Guardian is a small guard robot that lets you see
what's happening at home. The robot is controlled using text messages.
Here is a step by step building instructions.
STEP SEVEN (Arduino wiring1)
3D-print support parts

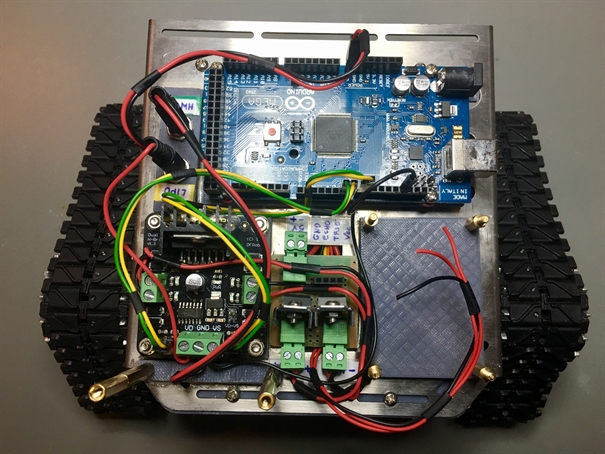

and make Arduino wiring.
Support parts STL-file 3D printing:
-
SuppPiece1.stl
-
SuppPiece2.stl
-
SuppPiece3.stl
Arduino wiring part list:
3 x 3D-printed support piece

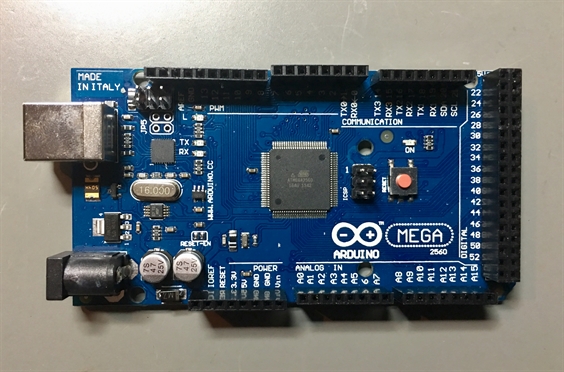

1 x Arduino Mega 2560

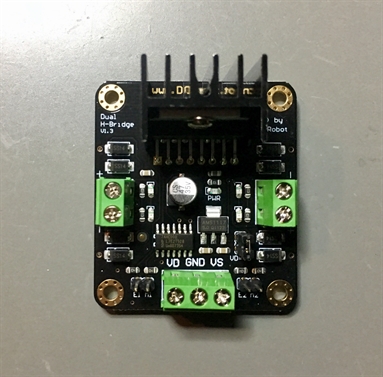

1 x MD1.3 2A Dual
Motor Controller Module SKU: DRI0002 (Product
Manual)

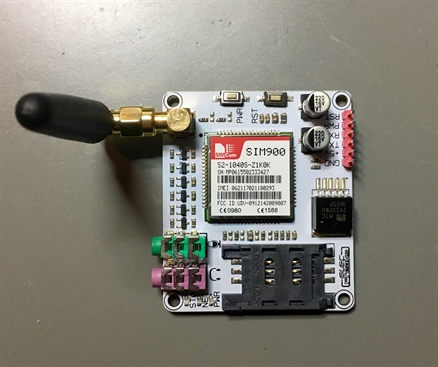

1 x EFCom Pro V1.0 GPRS/GSM Module (User
Guide)
1 x SIMM Card (2G)

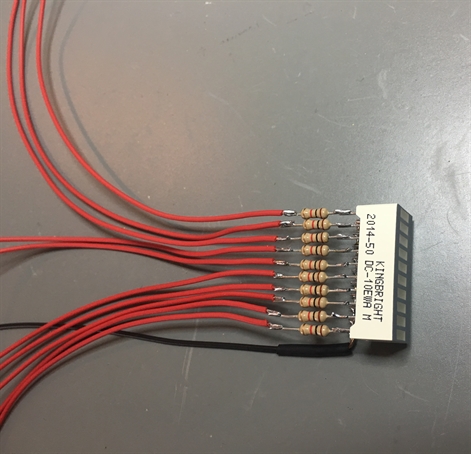

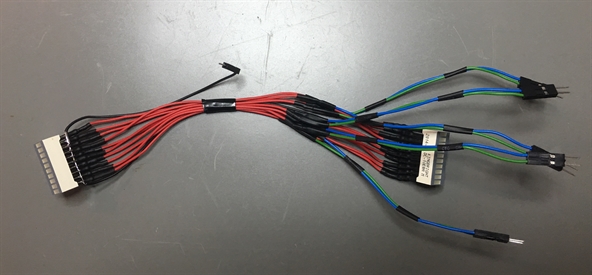

2 x 10-segment Led Bar Kingbright DC-10WA M (right and left)
2 x Green LED
3 x Red LED
20 x Resistor 1K

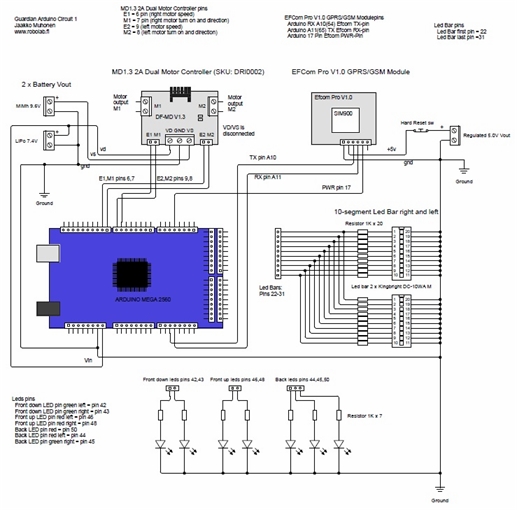

Guardian Arduino Circuit 1:
-
Guardian Arduino Circuit1.pdf
