GUARDIAN BUILDING INSTRUCTIONS

The Guardian is a small guard robot that lets you see what's happening at home. The robot is controlled using text messages. Here is a step by step building instructions.


STEP THREE (Rear bumper)

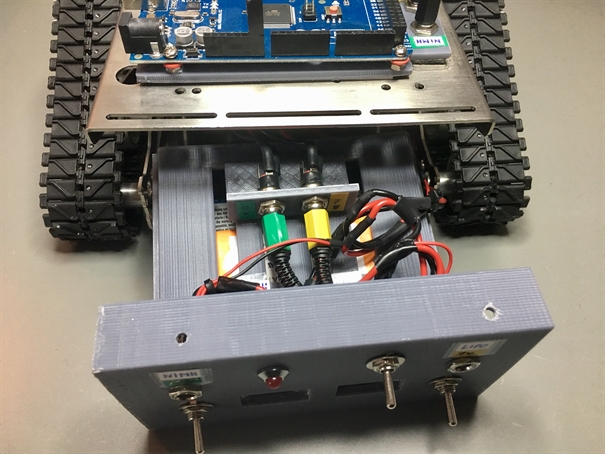

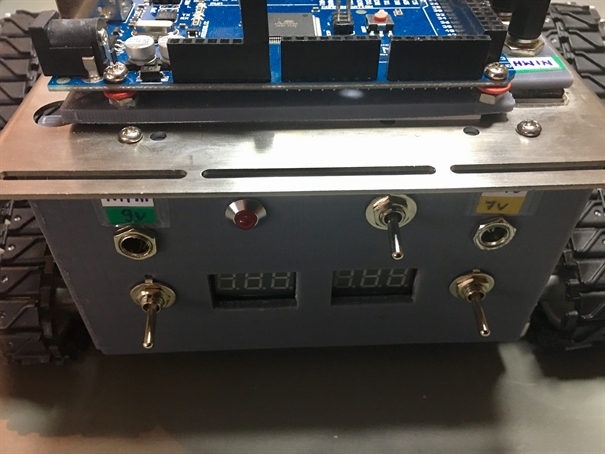

3D-print and build the rear bumper and panel. Install the battery case inside the Iron Tracked Chassis and a regulator on the rack.

Part list:

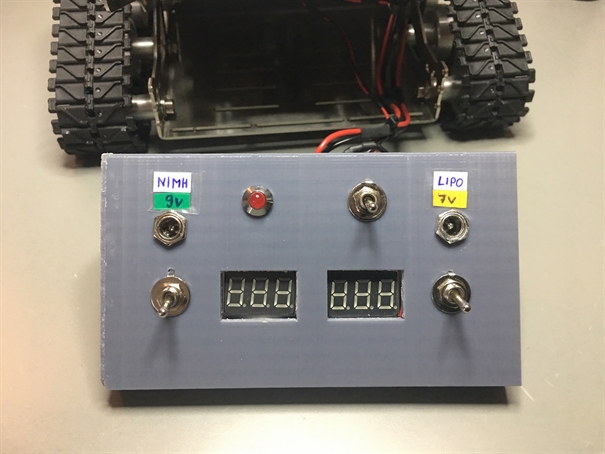

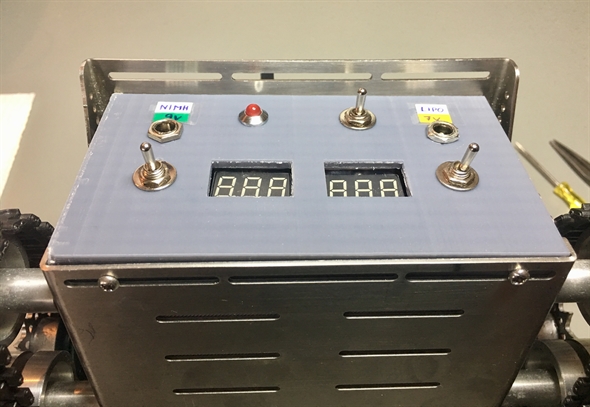

  1 x 3D-printed Rear bumper
  1 x MiMh battery 9.6v 2200mAh
  1 x Lithium battery 7.4v 2200mAh

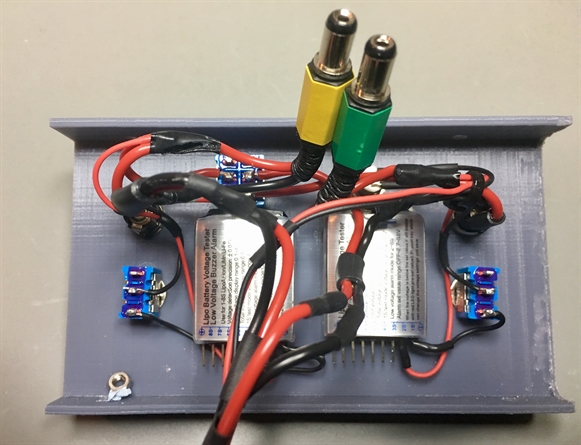

  2 x Battery Voltage Monitor (View Product)
  3 x Switch
  1 x 7805 regulator
  1 x Resistor 1K
  1 x Red LED
  3 x Terminal block
  2 x male plug
  2 x female plug

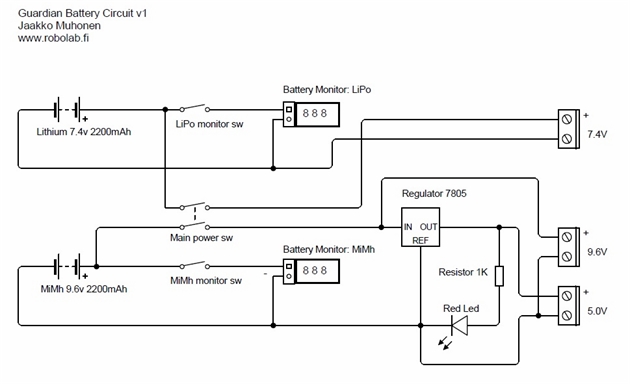

Battery Circuit:
- Guardian Battery Circuit.pdf

Rear bumper STL-file 3D printing:
- RearBumper.stl
