GUARDIAN BUILDING INSTRUCTIONS

The Guardian is a small guard robot that lets you see what's happening at home. The robot is controlled using text messages. Here is a step by step building instructions.


STEP TWO (Battery case)

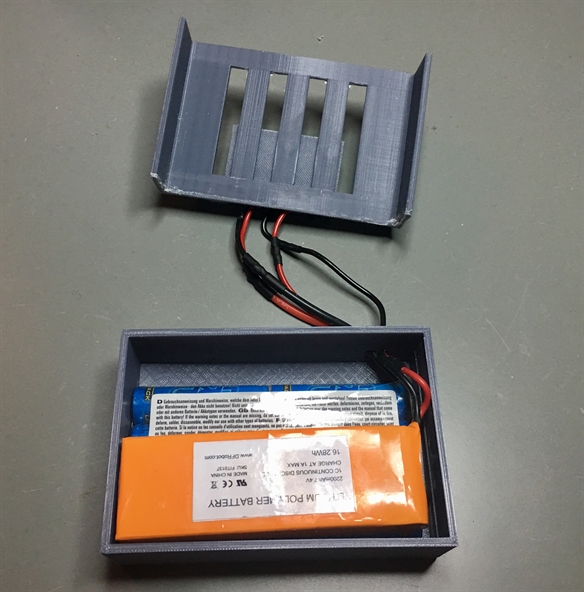

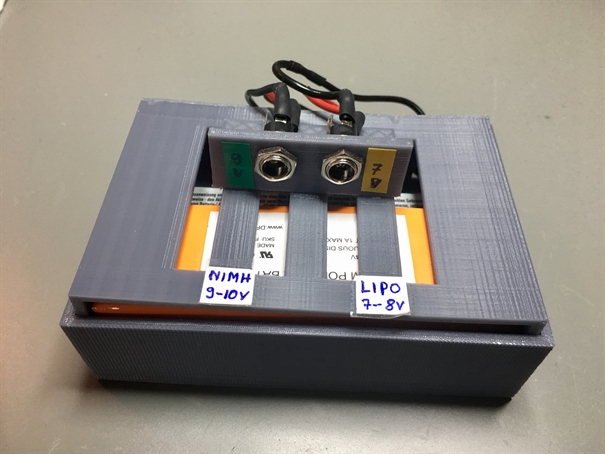

3D-print and build the battery case.

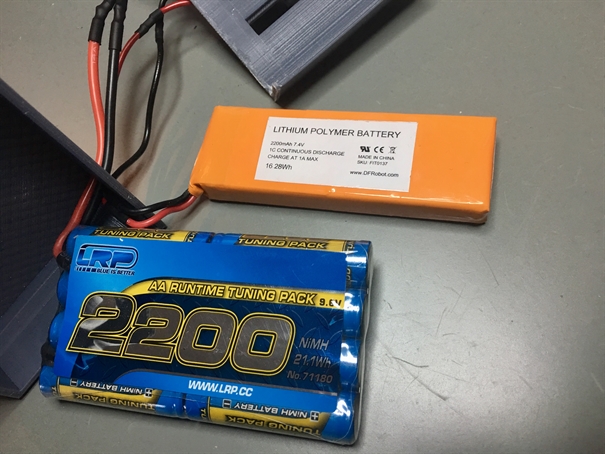

The Robot needs two battery, which are:
- MiMh 9.6v 2200mAh (Motors, Dual Motor Controller, EFCom Pro, Camera)
- Lithium 7.4v 2200mAh (Arduino Mega, Ultrasonic Sensors, Leds,
  Guardian Main Power Circuit up and down Board)


Battery STL-files 3D printing:
- BatteryCase1.stl
- BatteryCase2.stl
- BatteryCase3.stl
