GUARDIAN BUILDING INSTRUCTIONS
The Guardian is a small guard robot that lets you see
what's happening at home. The robot is controlled using text messages.
Here is a step by step building instructions.
STEP FIVE (Main Power Up Circuit)

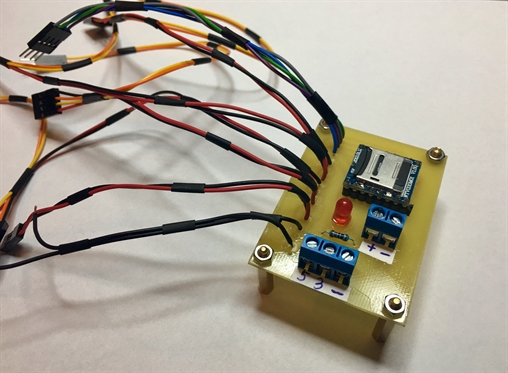

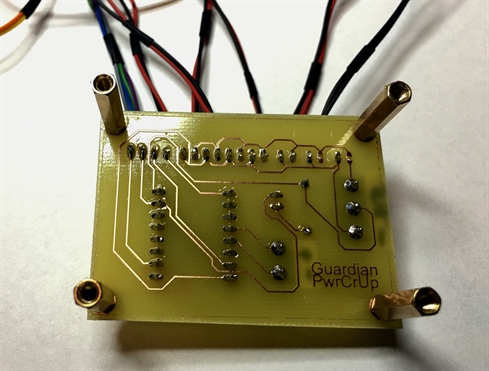

Make Guardian Main
Power Circuit Up board.

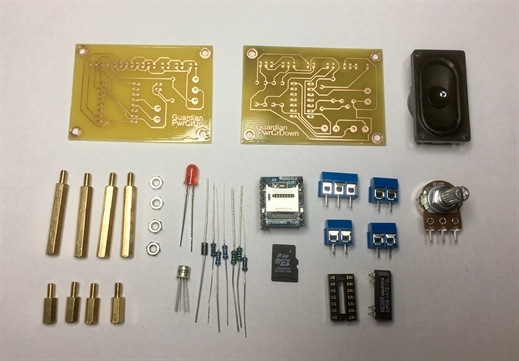

Main Power Circuit Up part list:
1 x Main Power Circuit Up Board
1 x
WTV020SD-16P
module (WTV020_manual_V1.3.pdf)
1 x MicroSD card (Guardian 11 x sound files)
1 x Resistor 1K
1 x Red LED
1 x Mini Speaker 2W 8ohm
2 x Terminal block
Main Power Up Circuits:
-

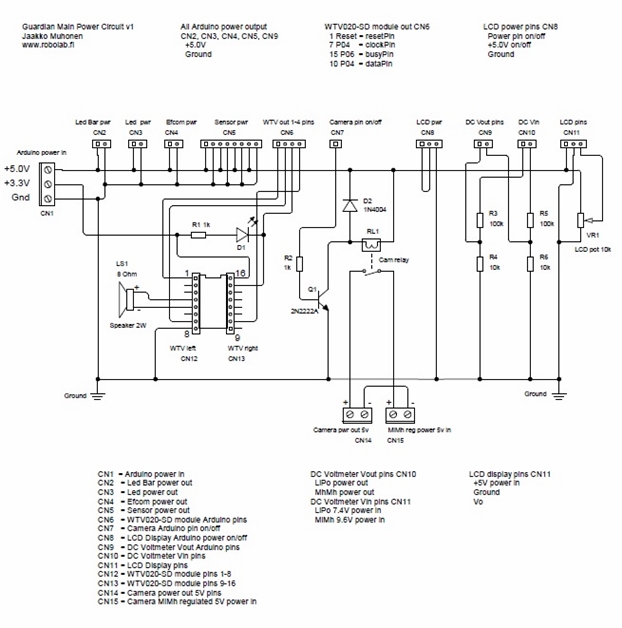

Guardian Main Power Circuit.pdf
-

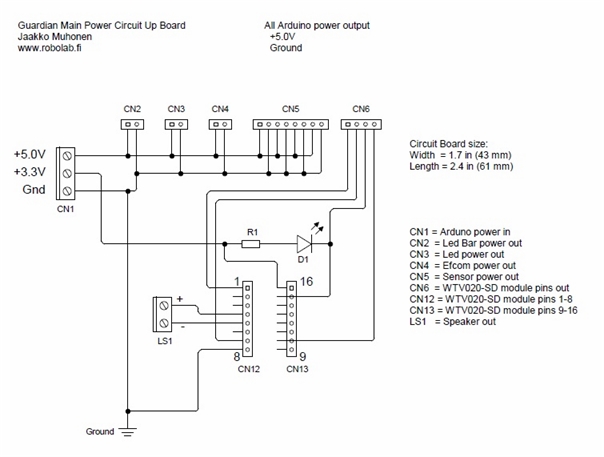

Guardian Main Power Circuit Up.pdf
-

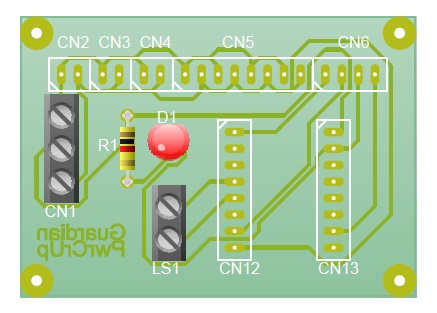

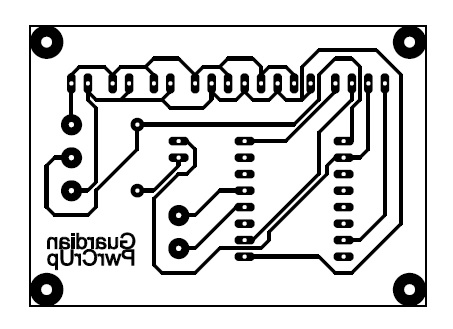

Guardian Main Power Circuit Up PCB Artwork.pdf
-
Guardian Main Power Circuit Up PCB Realword.pdf
Guardian robot ad4-format sound files (inside of the MicroSD card):
-
Sound/voice files
